Automatic Screen Printing Production Line | Auto Screen Printing Unloading UV Curing Machine| Flat Screen Printer With Auto Take-off Unit & UV Dryer

Automatic Screen Printing Production Line | Auto Screen Printing Unloading UV Curing Machine | Flat Screen Printer With Auto Take-off Unit & UV Dryer

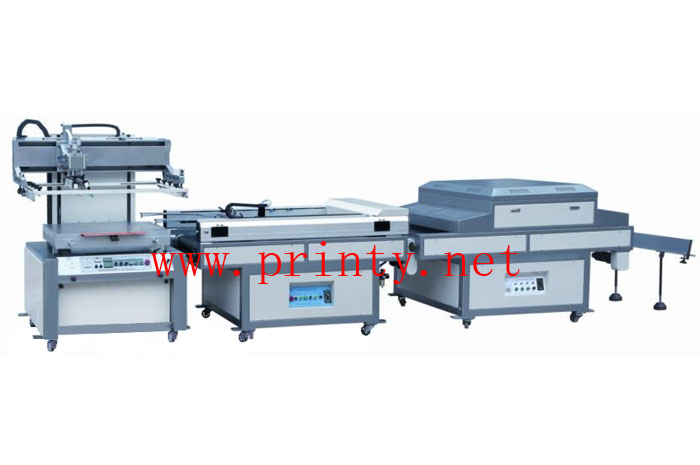

  • This screen printing production line consists of a semi automatic flatbed vacuum screen printing machine,an auto take off unit and UV curing machine, they work synchronously for screen printing flat materials such as paper, paper board, plastic sheets, circuit board, glass plate, metal nameplate and PVC boards etc.
  • Stainless printing table can be adjusted in 3 directions to ensure finest registration.
  • The printing table also has vacuum function to secure fixing of substrate throughout entire cycle or intermittently.
  • Brand-name pneumatic and electrical parts are used in the screen printing machine, auto take off unit and UV conveyor curing machine. Precise shafts and bearings are placed in active parts of the machine to ensure smooth and stable runs.
  • Special size requirement can be custom-made!
  Main Specifications:
Models PM-S4060L PM-S5585L PM-S60110L
Max printing size (mm) 400x600 550x850 600x1100
Printing table size (mm) 450x650 600x900 650x1150
Max printing speed (Pcs/hr) 1100 1000 900
Power supply 3 Phase 380V 12Kw 3 Phase 380V 14Kw 3 Phase 380V 16Kw
Machine dimension (mm) 6200x1000x1750 6500x1150x1750 6800x1200x1750
Machine weight (Kg) 1050 1150 1350


Video of Automatic Screen Printing Production Line | Auto Screen Printing Unloading UV Curing Machine | Flat Screen Printer With Auto Take-off Unit & UV Dryer
