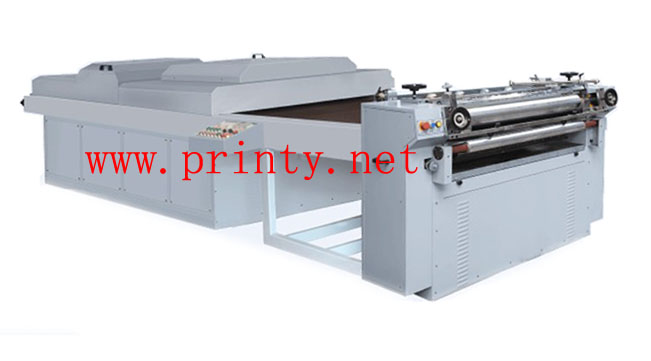

UV coating machine,UV coating equipment,UV coating machines equipments manufacturers,World wide supply UV coating machine,UV coating equipment,Roller UV Coaters
|
|
| |
| |
Features: |
| |
- Professionally Manufactures UV coating machine,UV coating equipment,UV coating machines equipments,Roller UV Coaters.World wide supply high quality UV coating machine,UV coating equipment,Roller UV Coaters, Roller UV coating curing machines etc.
- The UV coating machine,UV coating equipment,UV coating machines equipments and Roller UV Coaters etc are mainly used to coat the uv lacquer and aqueous lacquers on the printed paper surface so that it becomes glossy and bright. The coated papers also can protect against the moisture and wearing on the printed surface.
- Machine constructed with both IR drying system and UV drying system so that it can dry the UV lacquer and other aqueous lacquers etc.
The UV coating machines equip with three rubber coating rollers.
- Our UV coating machine can eliminate the needle hole and orange skin phenomenon. The scraping knife is more trim and can remove the UV lacquer from sticking to the surface of impression cylinder so that the paper back is not getting dirty.
|
| |
Main Specifications: |
| |
| Models |
PM-650UV |
PM-1000UV |
PM-1200UV |
PM-650UVIR |
PM-1000UVIR |
PM-1200UVIR |
| Max roller coating width (mm) |
650 |
950 |
1200 |
650 |
950 |
1200 |
| Max UV coating speed (Pcs/Hr) |
3000 |
3000 |
3000 |
3000 |
2500-3000 |
2500-3000 |
| UV curing lamps |
2×5.6kw |
2×8kw |
2×9.75kw |
2×5.6kw |
2×8kw |
2×9.75kw |
| IR drying lamps |
|
|
|
9×500w |
12×500w |
15×500w |
| Paper coating Spes(Gram/ Square Mtr) |
250-800 |
250-800 |
250-800 |
250-800 |
250-800 |
250-800 |
| UV coating machine weight (kg) |
2000 |
2500 |
2700 |
2100 |
2600 |
2800 |
| UV coater machine dimension (cm) |
580×150×130 |
580×170×130 |
600×170×140 |
580×150×130 |
580×170×130 |
600×170×140 |
|
| |
|
|
|
