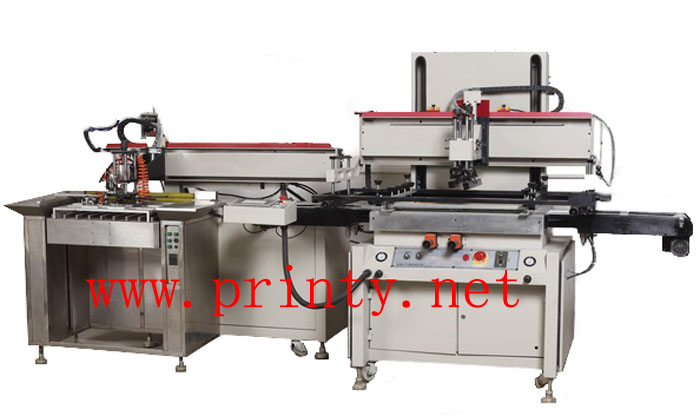

Fully automatic ceiling screen printing machine equipment,Fully automatic flat sheet screen printers,Fully auto ceiling glass ceramic metal screen printing machine
|
| PM-S4060A1C / S5070A1C / S6090A1C |
| |
| |
Features: |
| |
- Manufacture & Wholesale Supply fully automatic ceiling screen printing machine equipment,Fully automatic flat sheet screen printers,Fully auto ceiling glass ceramic metal screen printing machine.
- This machine is suitable for fully automatic screen printing on any flat sheet materials such as ceilings, glass, ceramic tiles, paper boards, wooden boards, plastic sheets, metal plates etc.
- With PLC and touch screen controlling system. Auto feeding,auto printing and auto delivering.
- With microcomputer controlling feeder, simple and convenient.
- Depending on different printing materials the feeder rising space can be set accordingly; the feeder also has a communication interface for an easy connection to other online systems.
- Applies the German and Japanese pneumatic control elements for quiet and accurate printing.
- Pneumatically driven to ensure quietness in operation.
- Can be operated in manual, semi-auto, or fully automatic mode to suit different worker's skill level.
- Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
- Work table and screen frame are easy to install and dismount.
|
| |
Main Specifications: |
| |
| Models |
PM-S4060A1C |
PM-S5070A1C |
PM-S6090A1C |
| Max screen printing size |
400X600mm |
500x700mm |
600x900mm |
| Screen printing table size |
600X850mm |
700x950mm |
800x1150 mm |
| Max screen frame size |
900x1300mm |
1000x1400mm |
1100x1500 mm |
| Max screen printing thickness |
0~20mm |
0~20mm |
0~20mm |
| Max screen printing speed |
500Pcs/H |
500P/H |
500P/H |
| Printing accuracy |
±0.05mm |
±0.05mm |
±0.05mm |
| Power supply |
380v 50Hz |
380v 50Hz |
380v 50Hz |
| Air supply |
0.4~0.8Mpa |
0.4~0.8Mpa |
0.4~0.8Mpa |
|
| |
|
|
Video of Fully automatic ceiling screen printing machine equipment,Fully automatic flat sheet screen printers,Fully auto ceiling glass ceramic metal screen printing machine
|
|
