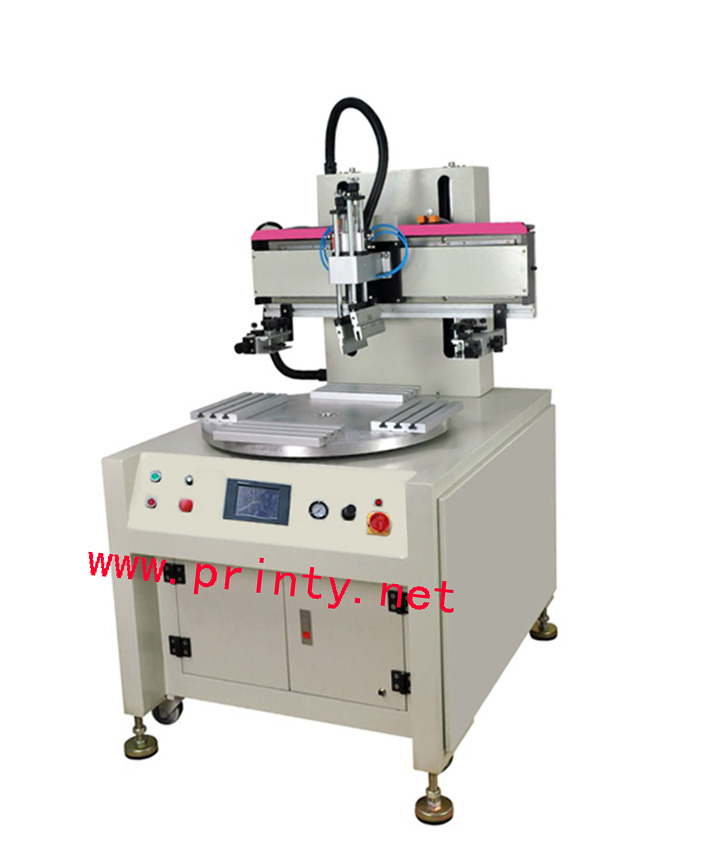

Rotary screen printer,Rotary screen printing machine,Rotary table screen printing equipment,Revolving 4 stations screen printing machine equipment

• Professionally Manufacture and Custom built high quality Rotary screen printer,Rotary screen printing machine,Rotary table screen printing equipment,Revolving 4 stations screen printing machine equipment.
• Rotary screen printer,Rotary screen printing machine,Rotary table screen printing equipment,Revolving 4 stations screen printing machine equipment is widely used in printing flat surface of small and accurate articles such as iPhone mobile, glass, instrument panels, cover, plastic sheet, metal plates, boxes, etc.
• As the machine constructs with 4pcs rotary work stations, it has faster printing speed than normal screen printing machine, and it is more convenient to integrate automatic loading, unloading and drying systems.
• Servo motor and pneumatically driven which results in high repeat printing accuracy and effectively reduces noise in printing operation.
• The printing speed etc can be adjusted by LCD tough screen.
• Silk screens can be adjusted in 3 directions to ensure finest registration.
• The squeegee and flood bar can be stopped before or after printing to suit different ink natures and different printing effects.
• Brand-name pneumatic parts are used. Precise shafts and bearings are placed in active parts of the machine to ensure smooth and stable runs.
• Squeegee/flood bar depth, pressure, speed, leveling and stroke, etc. are all adjustable to achieve various printing effects.

1. Max. printing size: 200×250 mm
2. Printing speed: 1320 Pcs/ Hr
3. Max. screen frame size: 250×400 mm
4. Max height of printing products: 100mm
5. Work stations: 4 Pcs
6. Station size: 250×300mm
7. Power supply: 220V Single phase 50/60HZ 1.5Kw
8. Machine dimension: 1080x1280x1600mm
9. Machine w eight: 285kg

Video of Rotary screen printer,Rotary screen printing machine,Rotary table screen printing equipment,Revolving 4 stations screen printing machine equipment
