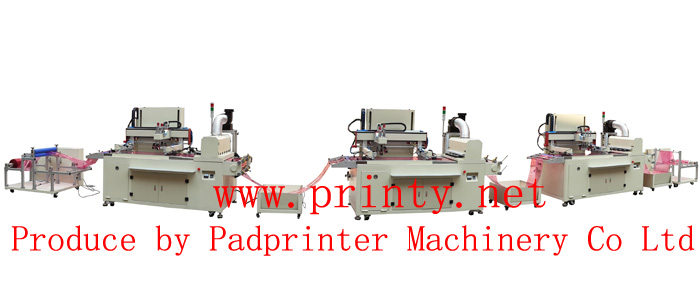

Roll to roll screen printer,Fully automatic roll to roll screen printing machine equipments,Roll to roll 1~3 color screen printing production line
|
| PM-S600A3CR |
| |
| |
Features: |
| |
- Professionally design and manufacture Roll to roll screen printer, Fully automatic roll to roll screen printing machine equipments, Roll to roll single color screen printing production line.
- This Roll to roll screen printer, Fully automatic roll to roll screen printing machine equipments, Roll to roll single color screen printing production line is designed and tailored to the single color silk screen printing on roll substrate products with auto winding, auto silk screen printing, auto UV curing and auto rewinding etc.
- Integrates with variable frequency motor, servo motor, PLC and touch screen etc for good and easy operation control.
- With reasonable structure, accurate screen printing result.
- With 0~2mm printing height adjustment, suitable for the package material screen printing.
- Automatic screen alignment, automatic tracking system ensure better printing results.
- Squeegee and ink scraper can be set to stop before or after printing.
- With three operating modes: Automatic, Semi Automatic and Manual
|
| |
Main Specifications: |
| |
| Max screen printing area |
600x600mm |
| Screen printing table size |
700x1000mm |
| Max screen frame size |
700x850mm |
| Printing substrate thickness |
<=2mm |
| Max screen printing speed |
>=1000 Pcs/Hr |
| Power supply |
3 phase 380V 30Kw |
| Air supply |
0.6~0.75Mpa/cm2 |
| Machine dimension |
5000x1120x1580mm |
| Machine weight |
2950kg |
|
| |
|
|
Video of Roll to roll screen printer,Fully automatic roll to roll screen printing machine equipments,Roll to roll 1~3 color screen printing production line
|
|
