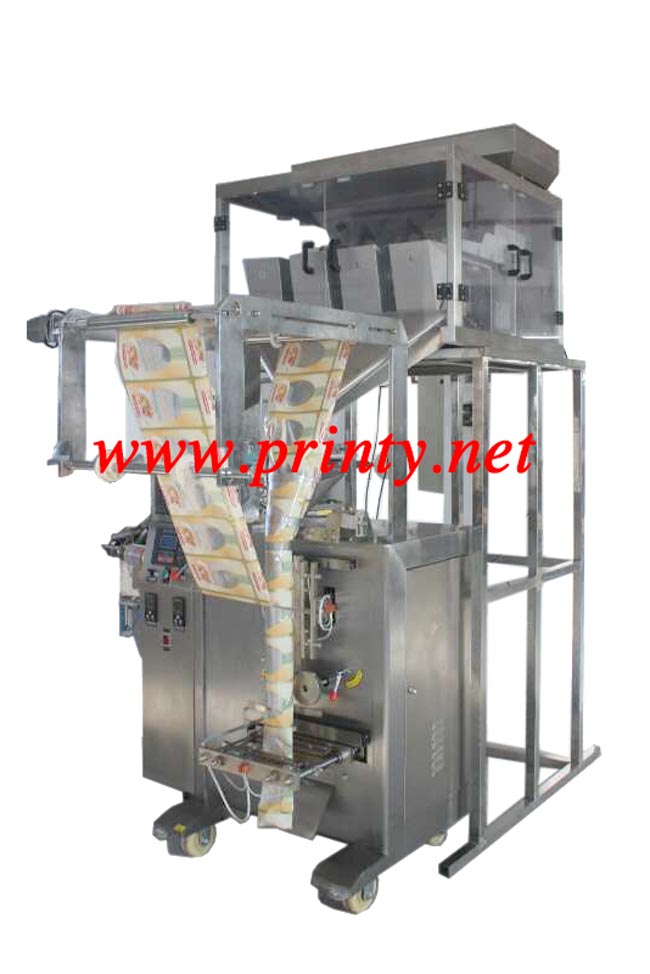

| Automatic food packing machine,Auto vertical dry fruit filling and sealing machine equipment,High speed multi-purpose food stuffs packing machineries |
| PM-P420A |
| |
| |
Features: |
| |
- Specially manufactured for auto packing Dried fruits such as apples slices, apricots, plums, beans, seeds and peanuts etc.
- Equips with PLC and touch screen controlling system, easy installation and operation.
- Automatic bag-making, measuring, filling, sealing, date printing, slot punching and product delivery all work continuously.
- Different bag forming units are replaceable.
- Film feeding length is adjustable.
- Special functions of the machine can be custom made on request.
|
| |
Main Specifications: |
| |
- Film width 160~380mm
- Film thickness 0.04~0.07mm
- Bag former 110mm width
- Package type: Standard "Pillow" with back sealing - 3 sides sealing: top,bottom and back;
- Packing materials can be PE, PT/PE, PET/AL/PE, BOPP/PE
- Packing capacity: 20~40 bags/minute
- Bag forming size: Length 50~230, Width 60~200
- Electronic measuring units: Two
- Range of measurement 50~750g
- Measuring error: +-1g
- Power supply AC 220V / 2Kw
- Machine dimension 1580x1100x2000mm
- Machine weight approx 580kg
|
| |
|
|
|
|
