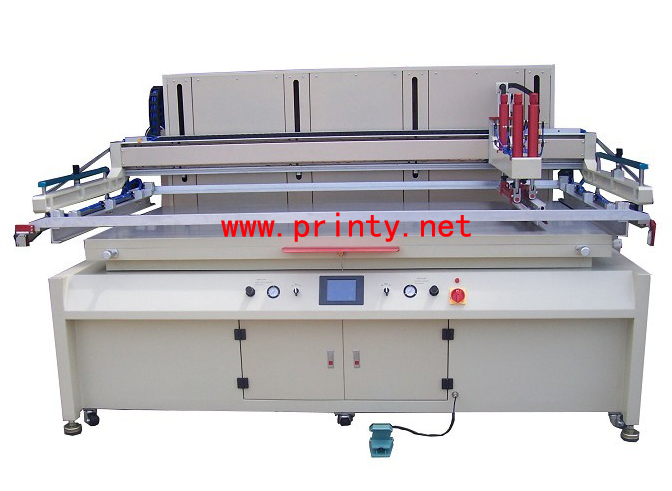

Large screen printer,Large format screen printer,Large size screen printer,Wide format screen printer,China Large size flat vacuum screen printers factory supplier
|
| PM-S90120 |
| |
| |
Features: |
| |
- Professionally Manufacture Wholesale and Supply Large screen printer,Large format screen printer,Large size screen printer,Wide format screen printer. We are China large size flat vacuum screen printers manufacturer and factory direct supplier.
- Bilt with Panasonic PLC and touch screen control system.
- Up and down,right and left are driven by motor for higher printing speed and saving pneumatic air.
- Accurate guide way is used for the printing force equalization. Aluminum cast construction with stainless steel printing table.
- Stainless printing table can be adjusted in 3 directions to ensure finest registration.
- The printing table also has vacuum function to secure fixing of substrate throughout entire cycle or intermittently.
- Plenty spaces available for printing even very thick matters.
- The squeegee and flood bar can be stopped before or after printing to suit different ink natures and different printing effects.
- Brand-name pneumatic imported parts are used. Precise shafts and bearings are placed in active parts of the machine to ensure smooth and stable runs.
- Automatic hydraulic equipment is installed to peel the screen off printed surface, which effectively avoids smear defect.
- Squeegee/flood bar depth, pressure, speed, leveling and stroke, etc. are all adjustable to achieve various printing effects.
- Special szie none standard screen printers and silk screen machine equipments can be professionally custom made on request!
|
| |
Main Specifications: |
| |
| Print table area(cm) |
100x130 |
| Printing area(cm) |
90x120 |
| Frame size(cm) |
115x155 |
| Printing Speed(Cycle/hr) |
700 |
| Pressure(Kg/cm2) |
>=5 |
| Power supply |
380V,2.5kw |
| Machine weight(Kg) |
600 |
| Machine dimension(LxWxH)cm |
170x120x180 |
|
| |
|
|
|
