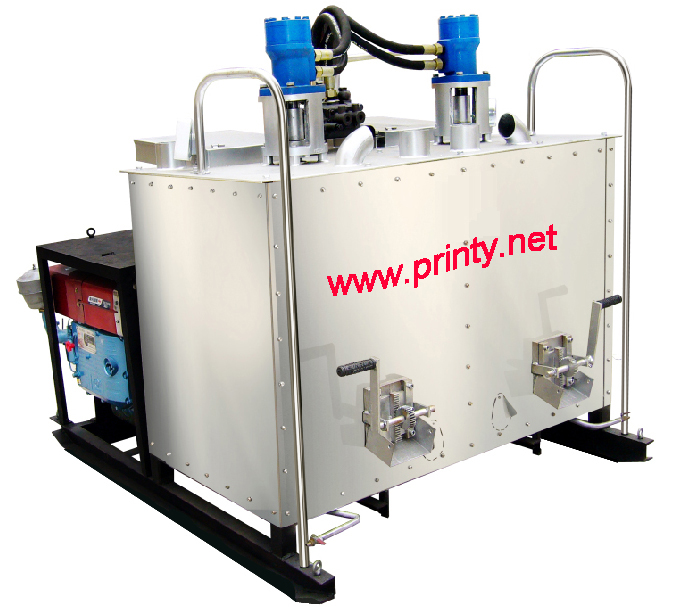

Hydraulic Vehicle-mounted double tanks thermal line making machine
|
| PM-LM800 |
| |
| |
Features: |
| |
- It is the main and special lines making machine for for making dash and solid lines, guiding arrows, text etc on the highways, municipal roads, county roads, residential parking area and factories..
- Powerful hydraulic driving torque ensures the machine works in high performance and large capacity.
- Uses direct flame burners for high combustion efficiency, saving time and energy.
- With high melting efficiency, long working time, simple operation and easy maintenance.
|
| |
Main Specifications: |
| |
- Calculating as works eight hours a day, it can draw lines about 800 to 1000 square meters per day.
- Engine: 15HP electric start diesel engine with evaporating water cooling system.
- Hydraulic system: Multi ways integration hydraulic control valves, positive and negative direction stirring, infinitely speeds variable system.
- Hydraulic motor: BM type.
- Hydraulic tank capacity: 70 liters
- Boiling tank capacity: 360kg x2.
- The boiling tank is made of high carbon stainless steel with upright paddle mixer.
- Frame structure, there are insulation materials between the internal boiling tank and outside wall.
- Heating by imported energy efficient burners through the liquefied petroleum gas.
- With overload and overflow protection devices to prevent misuse.
- Machine works on high quality, high speed, with flexible operation and easy maintenance.
- Line is drawn in regular, tidy, same thickness and its line style is beautiful.
- Landing knife: hard alloy with eccentric bushing devices and it can adjust the line thickness from 1 to 3mm.
- Line drown width: 100/150/200/250/300/400/450mm. Change to different width hopper according to the line requirements.
- Machine dimension: 1800 x 1500 x 1600mm.
- Machine weight: 700kg
|
| |
|
|
|
