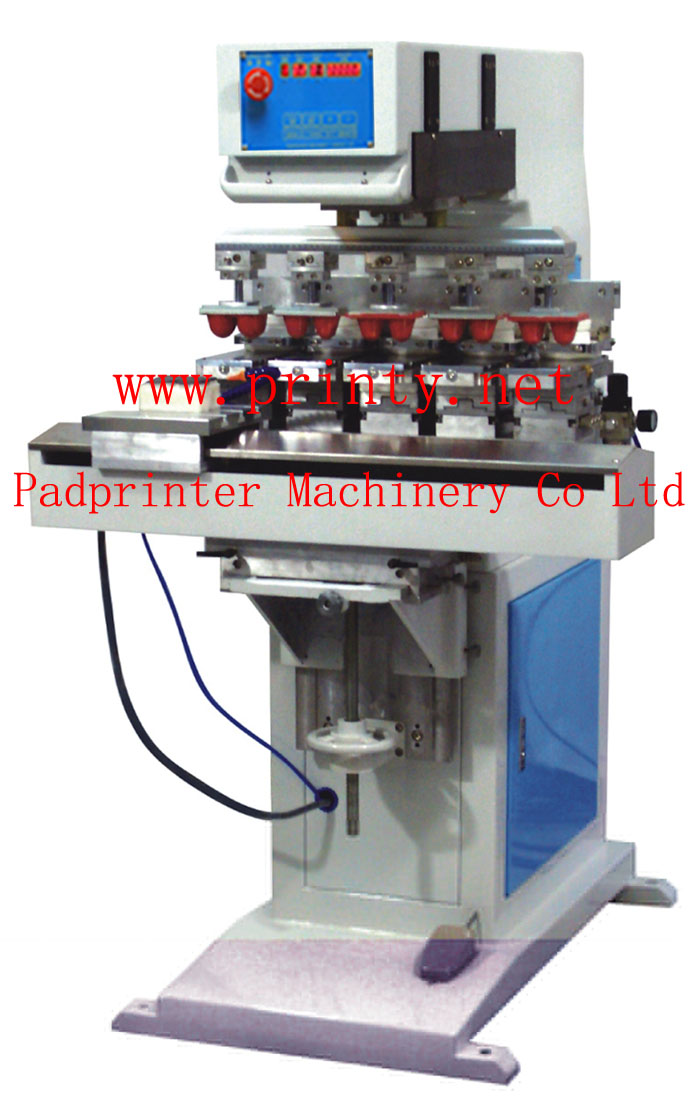

5 color shuttle pad printer machine with auto pad cleaning function,Pneumatic ink tray ink cup pad printing machine equipment with automatic cleaning system

5 color shuttle pad printer machine with auto pad cleaning function | Pneumatic ink tray ink cup pad printing machine equipment with automatic cleaning system

  • Professionally manufactures & wholesale 5 color shuttle pad printer machine with auto pad cleaning function, pneumatic 5 color ink tray ink cup pad printing machine equipment with automatic cleaning system.
  • Machine builds with advanced computerized control system, single chip microprocessor technology is being used.
  • The auto ink-cleaning unit can be attached to the shuttle print table under the request of customer.
  • The pad printing and pad cleaning logics etc are programmable....
  • Pneumatically driven, infrared photo sensor and hydraulic absorber are adopted
  • Built-in LED digital counter
  • Emergency stop system to ensure the safety of operator
  • Light-weight, strong aluminum cast machine frame Ink trays, work table and pads are independently adjustable for easy color registration
  • Speed, pad and printing stroke are easily adjustable for different printing requirements
  • Ink tray, doctor blade, nylon ink pusher and pads are easily installed and dismounted for quick cleaning.
  Main Specifications:
  1. Pad printing plate size 100x250mm.
  2. Pad printing ink cup diameter 90mm.
  3. Pad printing color: 1~5 colors.
  4. Pad printing speed 900Pcs/hr.
  5. Air supply 5 Bar.
  6. Power supply 110 / 220V 50/60Hz 130W.
  7. Machine dimension 820x920x1480mm.
  8. Machine weight 300kg.
