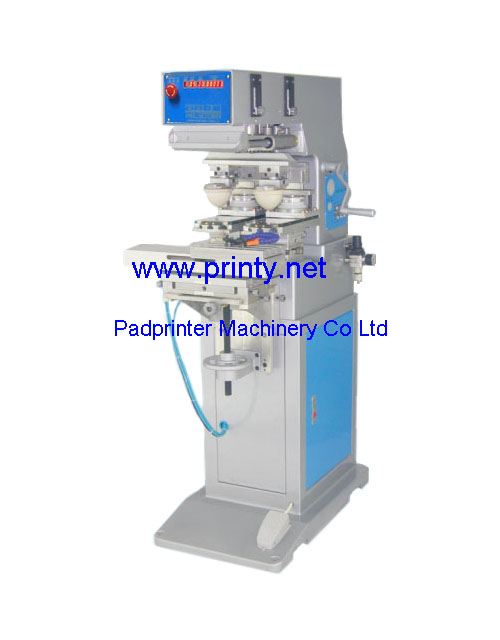

Pneumatic 2 color shuttle ink cup pad printer,Automatic good quality pad print machine,Advanced programmable pad printing machines equipment system

Pneumatic 2 color shuttle ink cup pad printer,Automatic good quality pad print machine,Advanced programmable pad printing machines equipment system

  1. Professionally manufacture produce wholesale pneumatic 2 color shuttle ink cup pad printer,Automatic good quality pad print machine,Advanced programmable pad printing machines equipment system.
  2. Machine system equips with advanced computerized system control
  3. Single chip microprocessor technology is being used
  4. Pneumatically driven
  5. Infrared photo sensor and hydraulic absorber are adopted
  6. Built-in LED digital counter
  7. Emergency stop system to ensure the safety of operator
  8. Light-weight, strong aluminum cast machine frame
  9. Ink trays, work table and pads are independently adjustable for easy color registration
  10. Speed, pad and printing stroke are easily adjustable for different printing requirements
  11. Ink tray, doctor blade, nylon ink pusher and pads are easily installed and dismounted for quick cleaning
  Main Specifications:
Max. plate size(mm) 100x250
Max printing diameter(mm) Ø82
Max printing length(mm) 82
Max pad head downward travel(mm) 50
Max pad head forward travel(mm) 125
Work table X-axis travel(mm) 35
Work table Y-axis travel(mm) 35
Work table Z-axis travel(mm) 130
Work table offset angle(°) 18
Pad adjustment X-axis(mm) 45
Pad adjustment Y-axis(mm) 40
Shuttle stroke(mm)
Conveyor pitch of index(mm)
No of jig fixture(pc) 1
Distance between work pieces(mm)
Max workpiece height(mm) 130
Pad printing pressure(MPa) 11.8
Max pad head forward pressure(MPa) 4.8
Shuttle pressure(MPa)
Conveyor pressure (MPa)
Max speed(pcs/min) 20
Air pressure(MPa/cm2) 0.45-0.60
Air consumption(L/min) 8
Power supply 110/220V 50/60Hz
Power consumption(W) 10
Machine dimension(mm) 780X400X1310
Packing dimension(mm) 960X580X1550
Net weight(kg) 120
Gross weight(kg) 158
