Pad printers,Ruler pad printer,Pad print machine,Pad print machines,Pad printing equipment,China pad printing machine for sale,Pad printing machine manufacturers
|

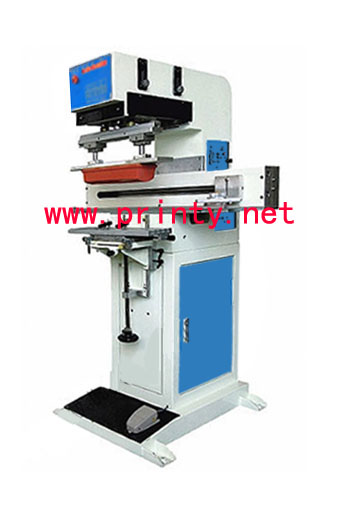

| PM-1000SC |
| |
| |
Features: |
| |
- We are China Pad printing machine manufacturers, professionally manufacture and Wholesale
wide variety of Pad printers,Ruler pad printer,Pad print machine,Pad print machines,Pad printing equipment with long shuttle seal ink cup.
- The Pad printers,Ruler pad printer,Pad print machine,Pad print machines,Pad printing equipment with long shuttle seal ink cup are specially designed for pad printing on long items such as one-meter-length rulers or similar products.
- works with two cylinders and shuttling sealed ink cup system etc.
- Advanced computerized system control Single chip microprocessor technology is being used
- Pneumatically driven
- Infrared photo sensor and hydraulic absorber are adopted
- Built-in LED digital counter Emergency stop system to ensure the safety of operator
- Light-weight, strong aluminum cast machine frame
- Ink cup, work table and pads are independently adjustable for easy color registration
- Speed, pad and printing stroke are easily adjustable for different printing requirements
- Ink tray, doctor blade, nylon ink pusher and pads are easily installed and dismounted for quick cleaning
|
| |
Main Specifications: |
| |
| plate size(mm) |
100x1100 |
| Max printing diameter(mm) |
Ø82 |
| Max printing length(mm) |
1000 |
| Max pad head downward travel(mm) |
50 |
| Max pad head forward travel(mm) |
125 |
| Work table X-axis travel(mm) |
35 |
| Work table Y-axis travel(mm) |
35 |
| Work table Z-axis travel(mm) |
130 |
| Work table offset angle(°) |
18 |
| Pad adjustment X-axis(mm) |
45 |
| Pad adjustment Y-axis(mm) |
40 |
| Shuttle stroke(mm) |
|
| Conveyor pitch of index(mm) |
|
| No of jig fixture(pc) |
1 |
| Distance between work pieces(mm) |
|
| Max workpiece height(mm) |
130 |
| Pad printing pressure(MPa) |
11.8 |
| Max pad head forward pressure(MPa) |
4.8 |
| Shuttle pressure(MPa) |
|
| Conveyor pressure (MPa) |
|
| Max speed(pcs/min) |
18 |
| Air pressure(MPa/cm2) |
0.45-0.60 |
| Power supply |
110/220V 50/60Hz |
| Net weight(kg) |
250 |
| Gross weight(kg) |
300 |
|
| |
|
|
|
|
